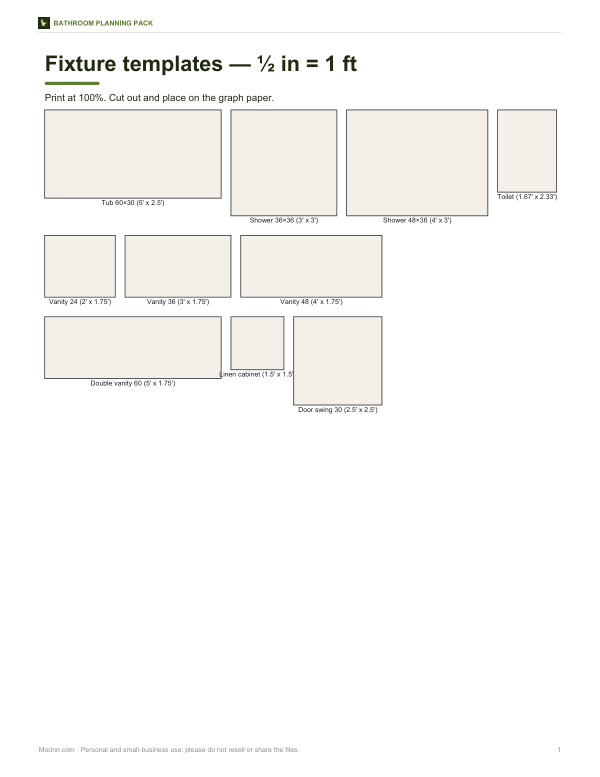

Printable Bathroom Fixture Cut-Outs
This sheet is for bathroom planning, toilet room layouts, and small-space remodels. It includes fixture templates at 1/2 in = 1 ft on a single Letter-size PDF page. Print at 100% and cut out the furniture shapes shown on the page.
Free printable · PDF
- 1 page
- US Letter — choose “Fit to page” for A4
- PDF, 97 KB
Free for personal, family and classroom use.
Use the cut-outs on graph paper to test fixture placement before you draw a final layout. Move the pieces around to check clearances, fit, and spacing in different room sizes.
Good for
- Test toilet and sink placement
- Check clearances on graph paper
- Try different bathroom layouts
Tip: Print at 100% and confirm the scale with a ruler before cutting.
4 files · PDF, DOCX, XLSX
Get every sheet: Bathroom Planning Pack
This sheet plus 3 more in one download, with the editable Word and Excel files. Bathroom planning graph paper (½ in = 1 ft), cut-out fixture templates to scale, a clearance checklist and a renovation budget sheet.
$5.00 USD, one-time 4 files · about $1.25 each
- Instant download
- 7-day refund
- Secure checkout by Stripe
7-day money-back guarantee. Full refund within 7 days of purchase, even after you download.

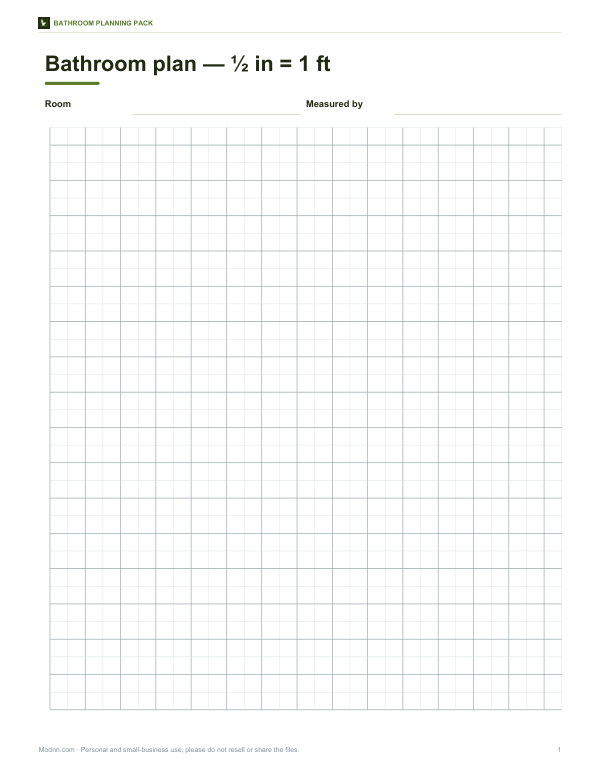

Printable Bathroom Graph Paper Sheet

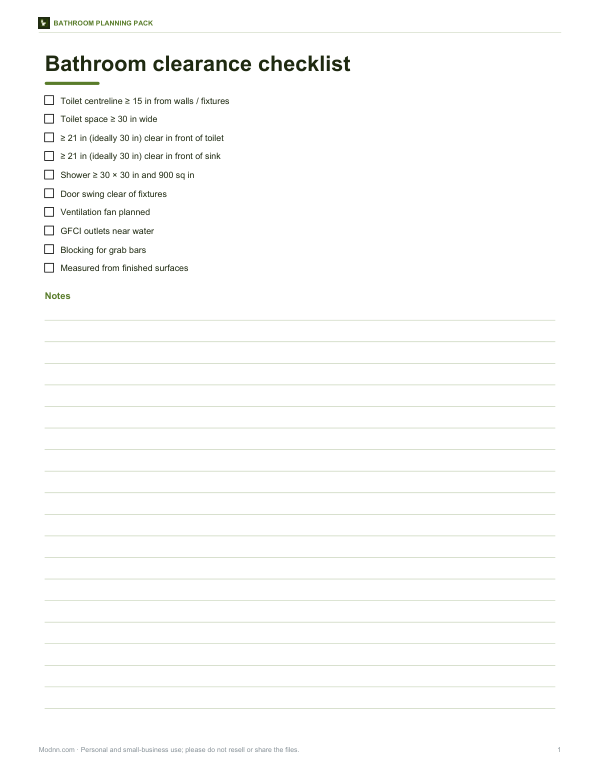

Printable Bathroom Clearance Checklist

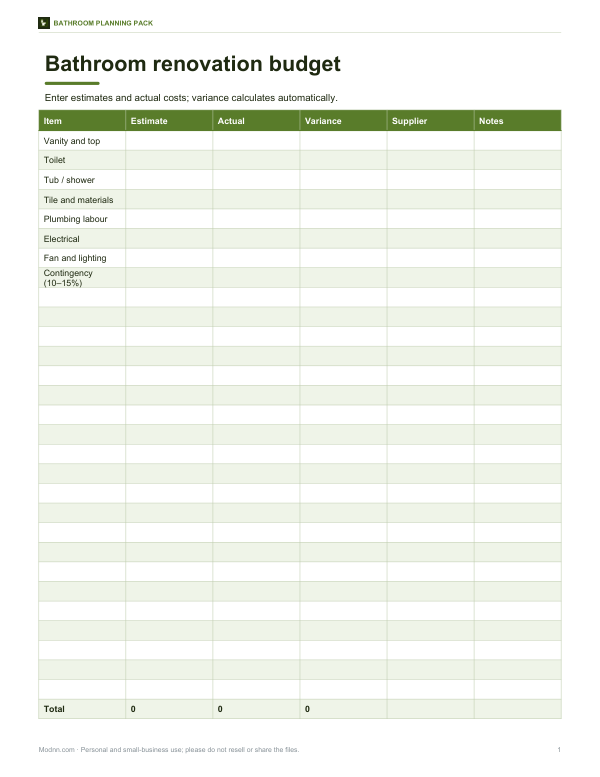

Printable Bathroom Budget Worksheet
